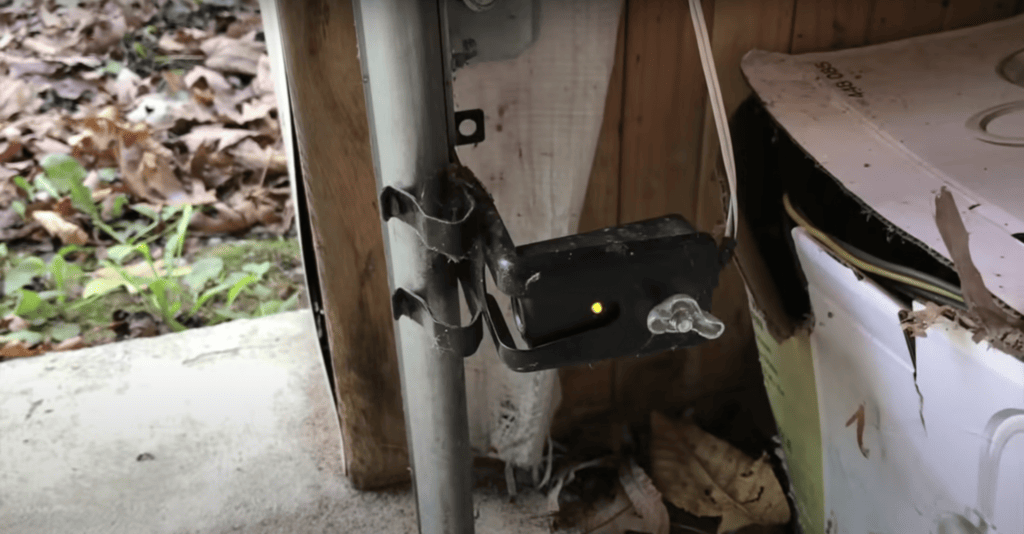

Is your garage door sensor yellow? Here’s what it means: If it’s a solid yellow light, then there’s nothing to worry about. If it’s flickering or not lit up, then it’s your warning sign that something is blocking the signal light or the sensors are out of alignment.
In plain terms – you need to remove whatever’s blocking the way or adjust the sensors.
However, there’s more to understand about it. I’ll tell you everything you should know about your garage door sensor’s secret language.

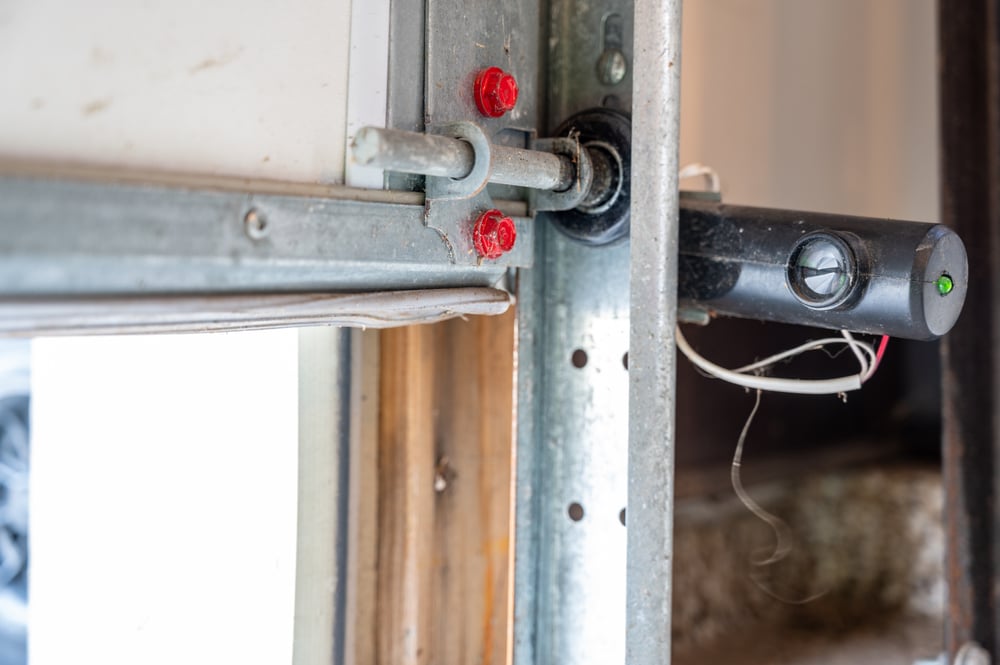

Understanding your garage door sensor
Let me give you a short rundown on what color the garage door sensors should be.
As you might have noticed, garage door sensors come in two colors: yellow and green.
Firstly, it’s necessary to understand that the yellow and green lights on the sensors are part of a safety mechanism. These two sensors work together to ensure your garage door operates efficiently and safely by detecting any obstructions in the path of the door.
The green light usually represents the receiving photo-eye, which detects the transmitted beam and should remain on all the time as well.
On the other hand, the yellow light is found on the transmitting photo-eye, which sends a beam across the garage door opening. It should always be lit, indicating that the proper signal is being sent.
Popular brands like Craftsman or LiftMaster follow the same mechanism.
The solid yellow light is usually not a cause for concern, as it indicates that there’s no obstruction between the two sensors and the sensor system is working correctly.
However, you may have some underlying issues that require attention if the yellow light appears when your garage door is malfunctioning, if it’s flickering, or not illuminated.
Tip before proceeding with the fixes
First and foremost, always read your garage door sensor’s user manual, as it contains vital information about the specific model.
Familiarize yourself with proper installation, troubleshooting, and maintenance procedures.
It’s essential to know how to correctly align and adjust the safety sensors to prevent accidents and injuries.
Keep an eye on the sensor’s yellow light, which typically signals that the safety reverse sensors are misaligned.
By paying attention to this indicator, you’ll be able to rectify any alignment issues quickly and maintain a safe environment.
Remember that garage doors can be heavy and cause significant injuries if mishandled. When you’re using your garage door, stay clear of its path and don’t even think about trying to dash under it as it’s closing.
If something doesn’t seem right or you have questions, don’t hesitate to reach out to a professional garage door technician for expert advice and help.
How to fix a yellow light on garage door sensors
1. Check for any obstructions
Literally, anything could be in the way – a soccer ball, tool box, broom, a piece of paper, or even spiderwebs around the sensor.
As long as it’s blocking the view of the sensors, it could mess with the signal and stop the door from closing correctly.
Take a moment to clear out anything that might be blocking the sensor’s path.
2. Clean the sensor lenses
You wouldn’t believe how often I’ve fixed my garage door just by cleaning the sensors.
This happens a lot on rainy days when the ground turns to mud, and anyone walking by kicks up a bit of a mess.
Because the sensors are installed about 6 inches from the floor, it’s pretty normal for them to gather dust – or in my situation, mud.
You might be surprised, but a simple wipe-down of the sensors’ lenses with a soft cloth (careful not to scratch or damage the sensor) could get your door working smoothly again.
This is because a buildup of dirt and grime can seriously mess with the sensor’s performance.
Once you’ve cleaned the lenses, give your garage door a test run to see if the yellow light went back to normal.

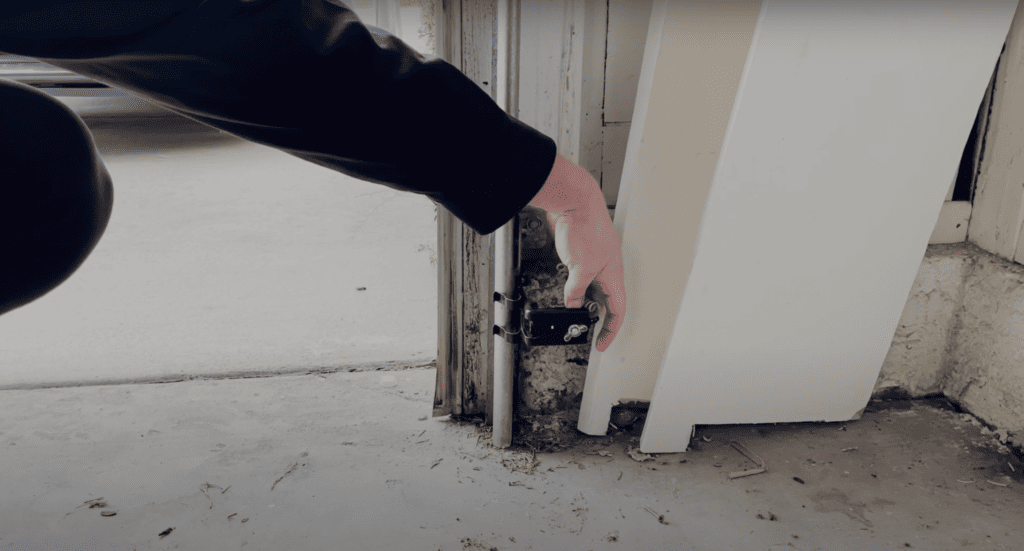

3. Realign the sensors
It’s not unusual for the sensors to get knocked out of alignment due to your garage door’s vibrations when it’s in use, or from accidentally bumping into them while taking out the trash.
For a quick check, loop a string around the two sensors and see if they’re properly lined up.
If one end of the string is higher or lower than the other, the sensors are likely misaligned.
Grab a wrench or similar tool and adjust the sensors.
Loosen the screws a bit and carefully readjust them so they’re looking straight at each other. Once they’re aligned, tighten the screws back up.
After you get everything straightened out, you might see the yellow light turn back on.
Pro tip: Using a zip tie to secure the sensors can help keep them steady, even with strong vibrations.

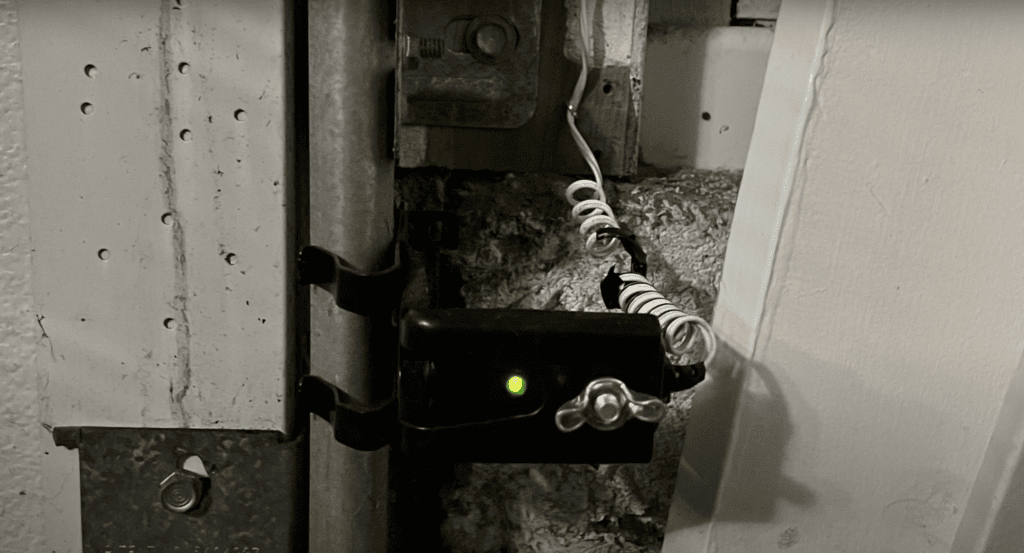

4. Check the wiring
Tight connections and well-functioning power sources are essential for both the yellow and green lights to work correctly.
When your sensor light is out, it might have been because it’s not receiving enough power.
One thing you’ll want to look at is the sensor wires.
Keep an eye out for any obvious damage.
Broken wires might be a result of rodent activity in your garage, chewing through the insulation.
Nail or staple piercing the cable insulation can also be the culprit.
Another sign that you need to replace your sensor wiring is when your garage door starts acting up—like stopping halfway while closing or inconsistently responding to your remote. These issues could be caused by frayed or damaged wiring.
If there’s no visible damage on wiring, it might be because the sensors are old or outdated, which are more prone to issues and less responsive.

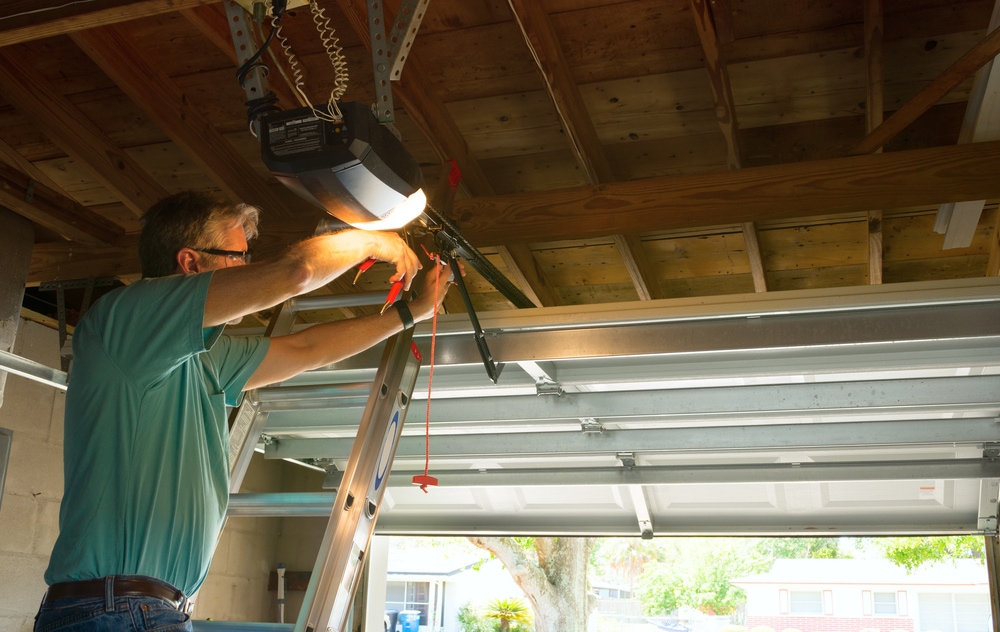

5. Seek Professional Help
If none of the troubleshooting works, or your garage door sensor appears damaged or malfunctioning, you should definitely seek professional assistance.
Attempting to fix a damaged sensor can be dangerous, as the electrical components could potentially lead to an accident if you’re not experienced with this type of repair.
It’s not worth the risk of getting electrocuted to save a few dollars.
Plus, if you’re unsure about how the system works or feel uncomfortable handling wiring, it’s definitely best to ring up a professional for help. They have the expertise needed to diagnose the issue accurately and perform the necessary repairs.
Not to mention, a seasoned tech can give you advice on how to keep your garage door system in top shape and help you avoid problems down the line.

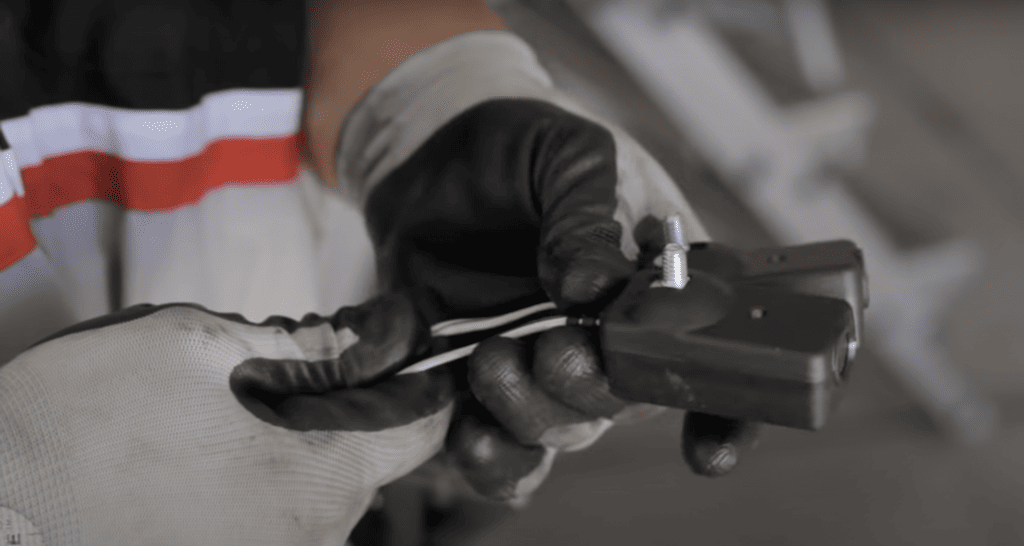

How to Replace Your Garage Door Sensors
In such a case that you’re comfortable replacing a damaged sensor, here are the few tips I can give you, so you can replace it smoothly.
- Consult your garage door sensor’s manual.
- Choose a compatible sensor replacement.
- Prepare a screwdriver, a tape measure, and possibly some additional sensor wires.
- Disconnect your garage door opener from the power source to avoid any accidents during the process.
After that, you can proceed with replacing your garage door sensor.
Here’s how:
- Unscrew the damaged sensor from its bracket and disconnect the sensor wires.
- Take note of how the wires are connected to make reassembly easier.
- Install the new sensor by attaching it to the bracket.
- Grab a tape measure and check if the sensors are the same distance from the ground on both sides.
- Take time to align both sensors.
- Reconnect the power to your garage door opener.
Check the alignment by looking at the sensor lights – one should be green, and the other should be yellow.
If all looks good, give your garage door a test run to make sure everything’s working smoothly.
Wrapping up
In a garage door sensor system, one sensor has a yellow light that emits an infrared beam, and the other has a green light, which is the receiver.
When the yellow light is on, it means that the transmitter is in use, sending the beam across the garage to the receiver sensor. However, you should take action if it’s blinking or not lighting up. Something may have caused it to malfunction.
To fix a malfunctioning sensor, here are your options:
- Check for any obstructions
- Clean the sensor lenses
- Realign the sensors
- Check the wiring
- Seek professional help
You can also replace the damaged sensor yourself, but remember to purchase a compatible replacement.
Bypassing the sensors can also be an option, but take note that it’s not entirely safe. The sensors are there for a reason. If you’re curious about it, go check out the linked article.
